Previous vehicleBack to index pageNext vehicle Bedford OLB

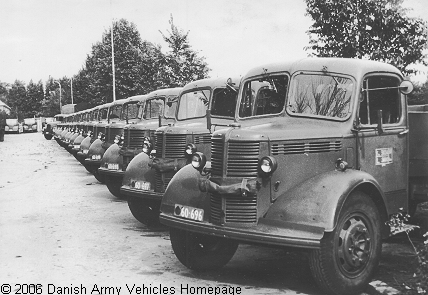

Bedford OLB, 4 x 2, 12V (Front view, left side)




  Front view, left side

Picture courtesy of Ole Hviid Tønnesen, Hinnerup



Danish Army Specific: N/A.
Historical: The O-series, designated as a 5 ton truck, was introduced in the summer of 1939. After WW II the O-series was re-introduced to the European market and remained in production until 1953.
Length: 6.35 m (247 inches).
Width: 2.30 m (90 inches).
Height: 3.08 m (120 inches).
Weight: 6.050 kg (13.310 lb.).
Engine
: 6-cylinder, 3.519 cm3 (214 cubic inches) displacement, liquid cooled.
Horsepower: 84 at 3.100 rpm.
Transmission: 4-speed.
Transfer case: None.
Electrical system: 12 volt, negative ground.
Brakes: Hydraulic, vacuum assisted.
Tyres: 7.50 - 20.
Fuel type: Petrol.
Fuel capacity: 73 liter (16 gallons).
Range: N/A.
Crew: 1 + 21.
Additional: Early models had a 72 hp engine.
Variants:
Bedford OLB radio truck (90 kb)
Bedford OLB radio-relay truck (114 kb)
Bedford OLB squad car (139 kb)
